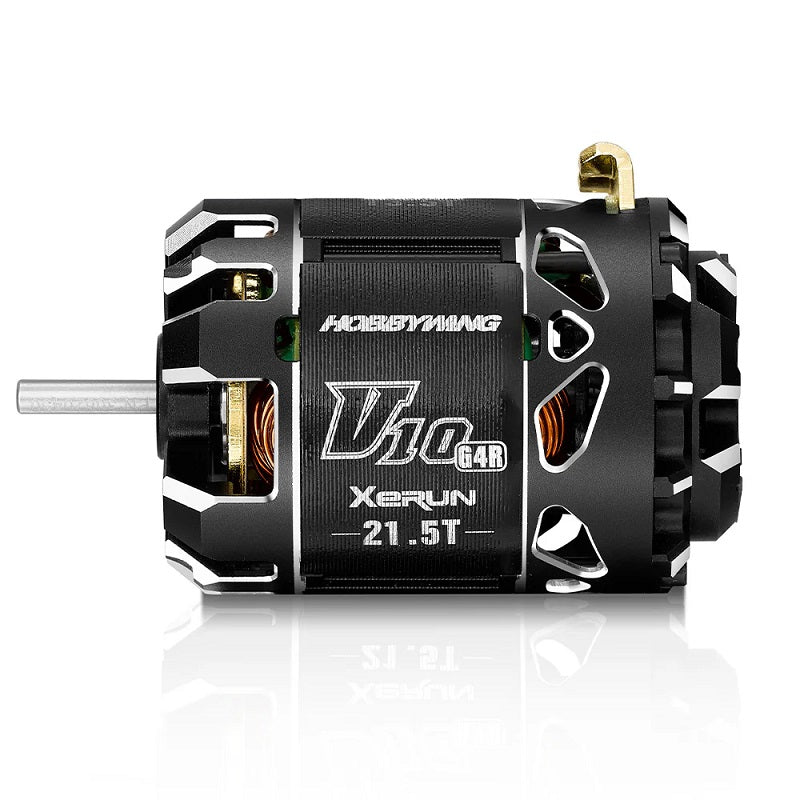

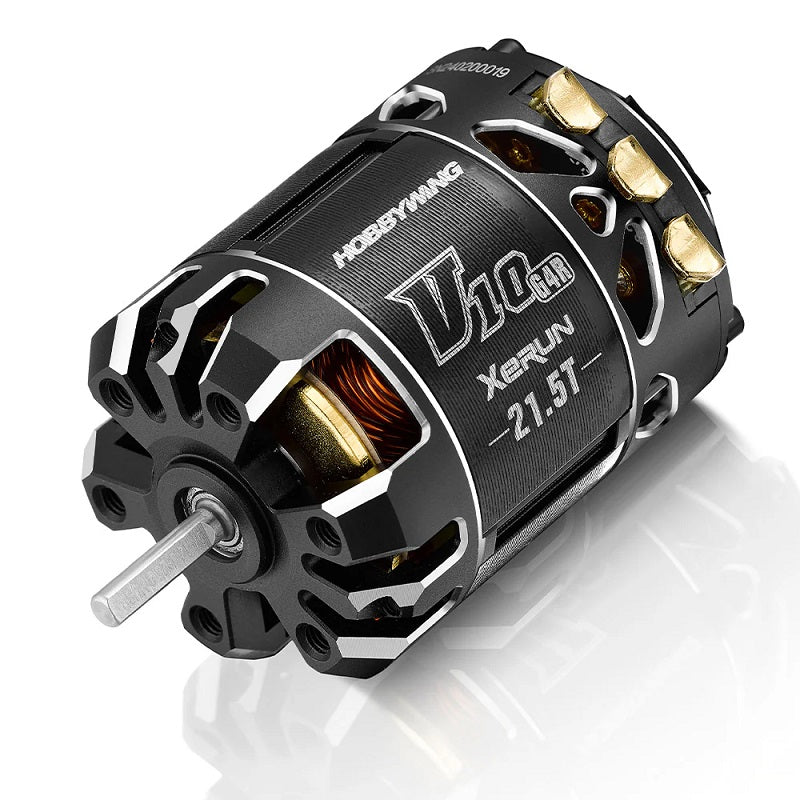

Hobbywing Xerun V10 G4R 21.5T Brushless Motor

Hobbywing Xerun V10 G4R 21.5T Brushless Motor

The Hobbywing Xerun V10 G4R 21.5T Brushless Motor is specially designed for 1/10 and 1/12 ROAR Stock racing. This Xerun V10 G4R is equipped with a high-performance stator core, built-in high precision Hall sensor, and combined with a high precision and balanced rotor that guarantees outstanding linearity and smoothness. The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation and dual sensor interface design to meet various wiring/layout requirements! This makes the Xerun V10 G4R the ultimate ROAR approved weapon of choice for 1/10 and 1/12 Stock racing.

Features:

• Excellent performance, specially designed for 1/10 -1/12 STOCK racing. Designed to pair with HOBBYWING XR10 Stock Spec G2 ESC

• The innovative outer diameter structure of fully exposed stator core maximizes the heat dissipation area and the rear end of the motor is a big opening structure to further improve the heat dissipation effect.

• Dual sensor interface design to meet various wiring/layout requirements.

• The special copper bar is customized and the spacing of copper bar is widened, which greatly facilitates the operation of soldering wire.

• The built-in high precision Hall sensor combined with the high precision and balanced rotor guarantee outstanding linearity of the motor.

• The use of high-performance stator core, 220°C high-temperature-resistant enameled wire, high precision and high strength bearings, and copper solder tabs with super current endurance guarantees outstanding

Specs:

• ROAR Approved: Yes
• Turns: 21.5T
• kV Rating: 2600kV
• Outer Diameter: 35.8mm
• Length: 51.3mm
• Shaft Diameter: 3.175mm
• Weight: 158g
• Poles: 2
• Front Bearing: 9x4x4mm
• Rear Bearing: 8x3x4mm
• No Load Current: 4.0A
• Adjustable Timing: 20-60 degrees
• Applications: 1/10 & 1/12 Stock Racing
• Input Voltage: 1-3S LiPo (7.4V)
