PN Racing
No reviews
PN Racing V3 Enclosed 64P 53T Gear Differential
PN Racing V3 Enclosed 64P 53T Gear Differential
SKU:MR2055PC
Regular price
$59.99 USD
Regular price
Sale price
$59.99 USD
Shipping calculated at checkout.
Out of stock
Quantity
Couldn't load pickup availability
PN Racing V3 Enclosed 64P 53T Gear Differential
- V3 version comes with 600126T 3x6x2.5mm Thrust Ball Bearing
- Light weight decreases rotational mass, makes for faster acceleration

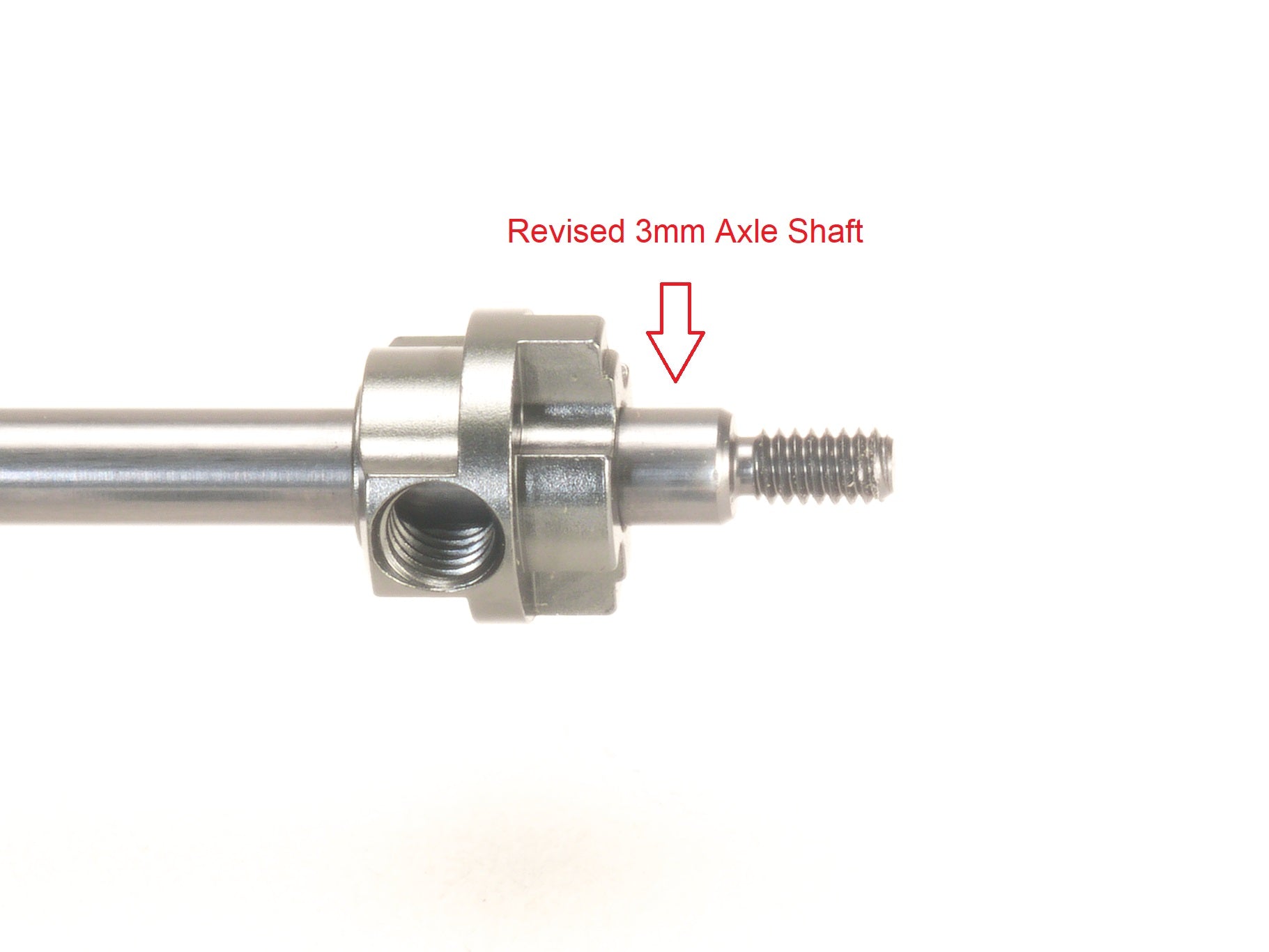

- The axle has been revised to 3mm (both sides use the same size bearing/bushing now)
- Fast gear ratio changes. No disassembly of the differential is necessary for a spur gear change.
- Adjustable side gear tension for tight or loose differential action.
- Smooth quiet operation. No gear noise and vibration associated with stock differential
- With the Enclosed case, Racers can add diff grease to fine-tune diff action, the covers also help reduce dust and particles on diff gears therefore less maintenance.

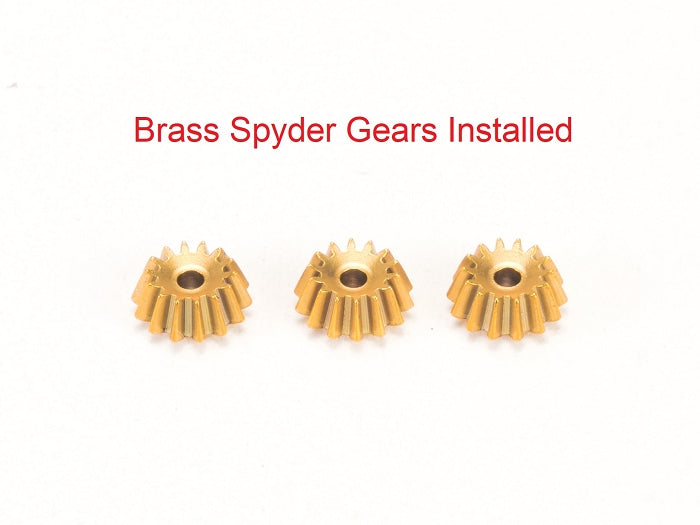

- Comes with the newest Brass Spyder Gear (MR2055B) for ultra-smooth action
- Does not come with 64p pinion gears
Changing Spur Gear Ratio:
1. Remove 3 screws on the covers and remove both covers
2. Loosen the Tension Nut to separate the side gears
3. Allow spider gear pins to recess into the carrier. Depress with a screwdriver if necessary, as shown by the arrows
4. Remove the spur gear
5. Installation is the reverse of removal
