Tekin T-180 Lo-Profile Torque Servo

Tekin T-180 Lo-Profile Torque Servo

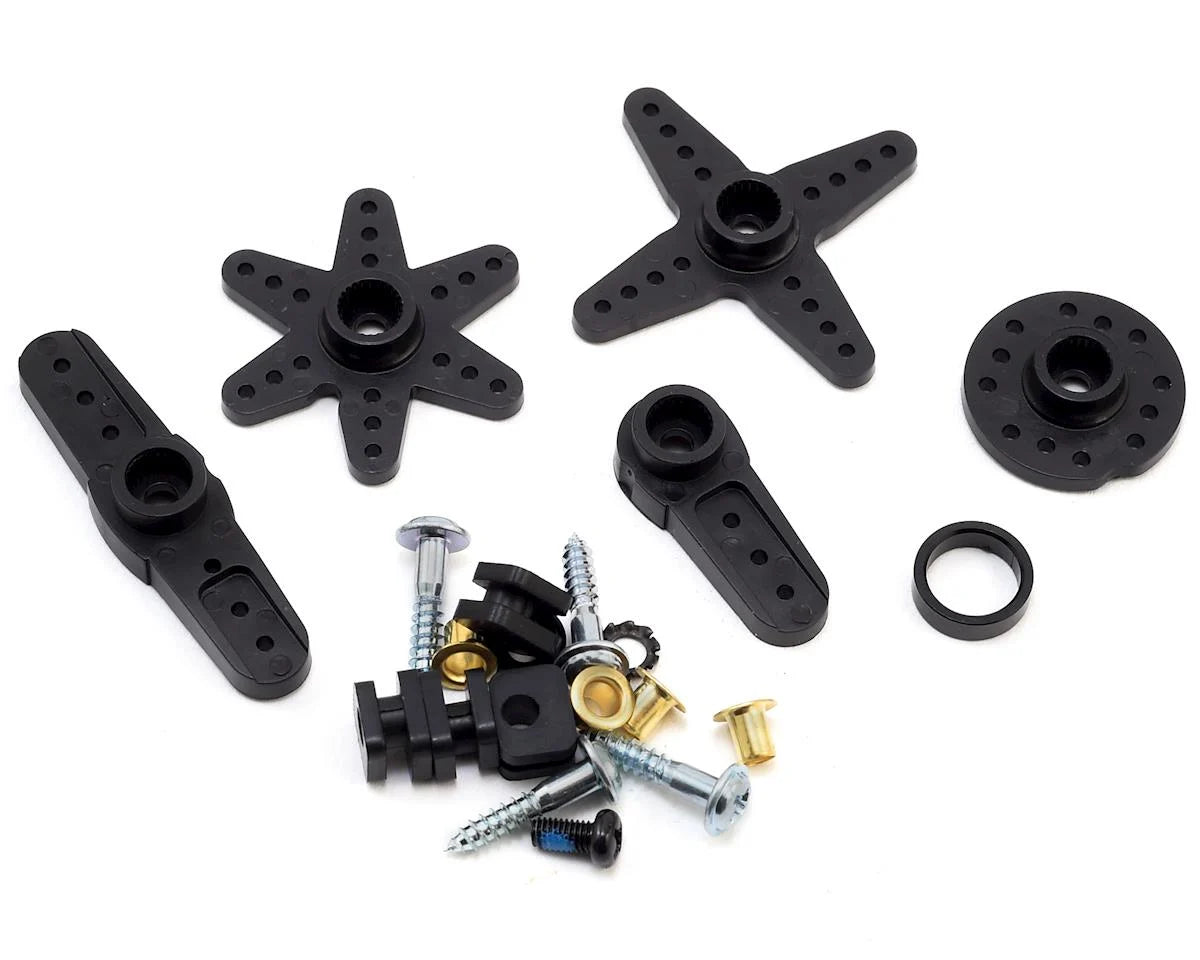

Big torque in a small housing, the Tekin T-180 Lo-Profile Torque Servo gives you plenty of options on the track. Designed to give you the industry's highest per degree resolution steering and plenty of speed to keep that chassis where you want it. Full Metal Gear set, All Aluminum Housing, Digital Position Encoding and loads of Torque, this servo keeps you in control. Fine-tune your setup with and extensive set of adjustments via Tekin's HotWire PC Interface. This package includes a 20mm aluminum servo arm, and a hardware package for more servo arm options.

Features:

• Digital Magnetic Position Encoder (DPE)
• Low Profile Design
• Specifically Designed for 1:10 Scale Applications

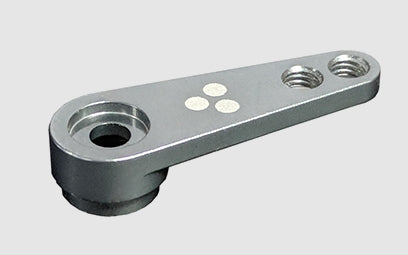

• Included Aluminum 20mm Vector Servo Arm
• Full Aluminum Servo Housing
• Element Proof Design*
• Precision Cut Full Metal Gears
• ABEC5 Ball Bearings
• High Voltage Capable
• High Torque Coreless Motor
• 25T Output Spline
• Programmable via HotWire PC Interface
• Overload Protection Technology
• Thermal Protection Circuitry
• Low Voltage Alarm**
• Quiet, Efficient, Cool Operation
• HDAC: High Density Copper PCB's

*Tekin Element Proof products are designed to withstand water, snow and mud. Not intended for operation while submerged in liquid.
**requires HotWire sold separately

Hotwire Programmable Features:

• Feel - Mild to Aggressive
• Speed Limit
• Torque (0-100%)
• Torque Delay
• Direction - Normal / Reverse
• Center Point
• Travel
• Soft Starting Speed & Torque
• Max Temp Alarm
• Low Voltage Alarm
• Over Voltage Alarm
• Bind Relief
• Fail Safe Speed and Position
• Set Custom Servo Name

Specs:

• Torque (@8.4 - 7.4 - 6.0V): 212 - 194 - 165 oz/in, 15.3 - 14.0 - 11.9 kg/cm
• Dynamic Torque (@8.4 - 7.4 - 6.0V): 350 - 323 - 280 oz/in, 25.2 - 23.0 - 20.2 kg/cm
• Speed (@8.4 - 7.4 - 6.0V): 0.06 - 0.07 - 0.08 sec/60°
• Input Voltage: 4.8V-8.4V
• Gear Set: Full Metal
• Dimensions: 1.57 x 0.79 x 1.06in / 40 x 20 x 27mm
• Mounting Height (Base to Mount Tabs): .72in / 18.4mm
• Weight: 1.92oz / 54.6g
